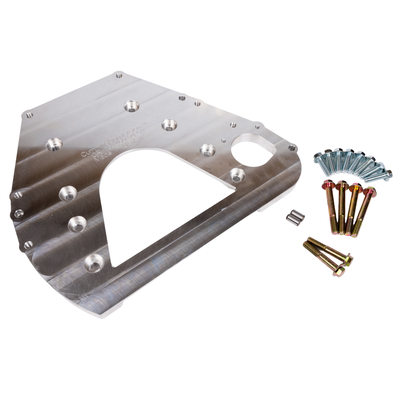

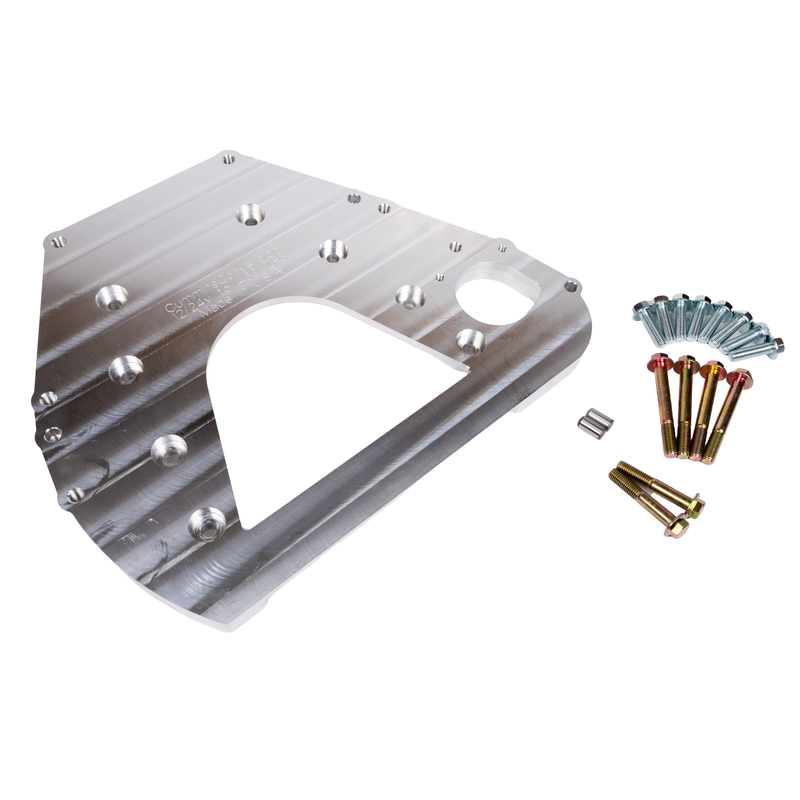

Transmission Adapter 89-02 12/24v Cummins to 1987-1997 Ford 460(BBF Gasser) ZF5

Transmission Adapter for a 1989-2002 12/24v Cummins to 1987-1997 Ford 460(BBF Gasser) ZF5

Includes Bell housing,Starter and Adapter bolts along with dowels from transmission to adapter.

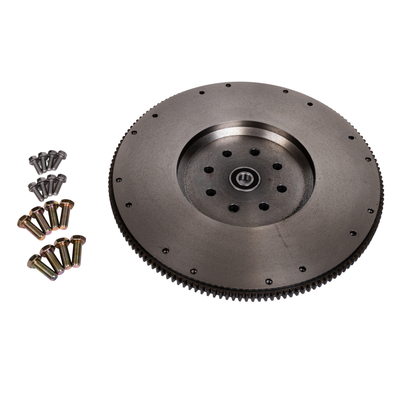

Adapter is designed to use a SACHS NFW7223 and will need to be machined to fit the 6303 pilot bearing. When used with the SACHS NFW7223 no starter spacer is needed, any single disc zf5 clutch will bolt to this flywheel.

We recommend purchasing flywheel here (https://www.rockauto.com/en/moreinfo.php?pk=1976038&cc=1095869&pt=5348&jsn=936)

Adapter use a 03-07 6.0 Power stroke or 08-10 6.4 Power stroke Starter. We recommend the 6.4 starter as the 6.0 starter on some transmission might require bell housing clearance. On some Cummins engine a small amount of grinding is need on block to clearance starter(see last pic)

***** Here at Cummins Conversion are adapters are designed off OEM Cad models, machined in house on all sides using state of the art equipment. We use in machine propping inspection to insure all parts are to tolerance before removed from the machine. Material is USA sourced 6061 alum.

Threads are made using a process that creates a 30% stronger thread then conventional threads you will NOT strip this threads out*****
