Transmission Adapter: 03-18 Cr Cummins to 2003-2010 zf6 6.0/6.4

Transmission Adapter for a 2003-2018 CR Cummins to 2003-2010 zf6 6.0/6.4

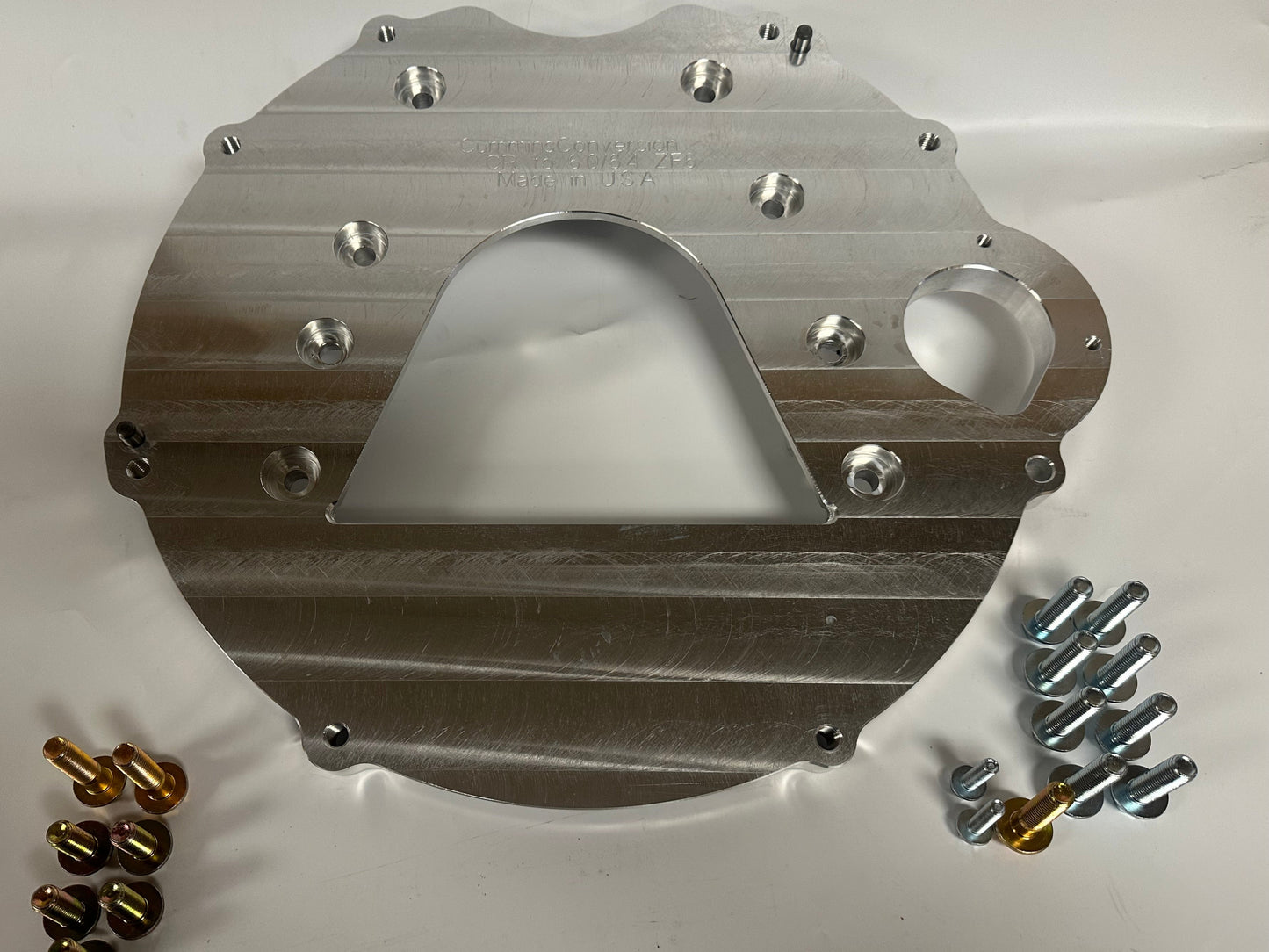

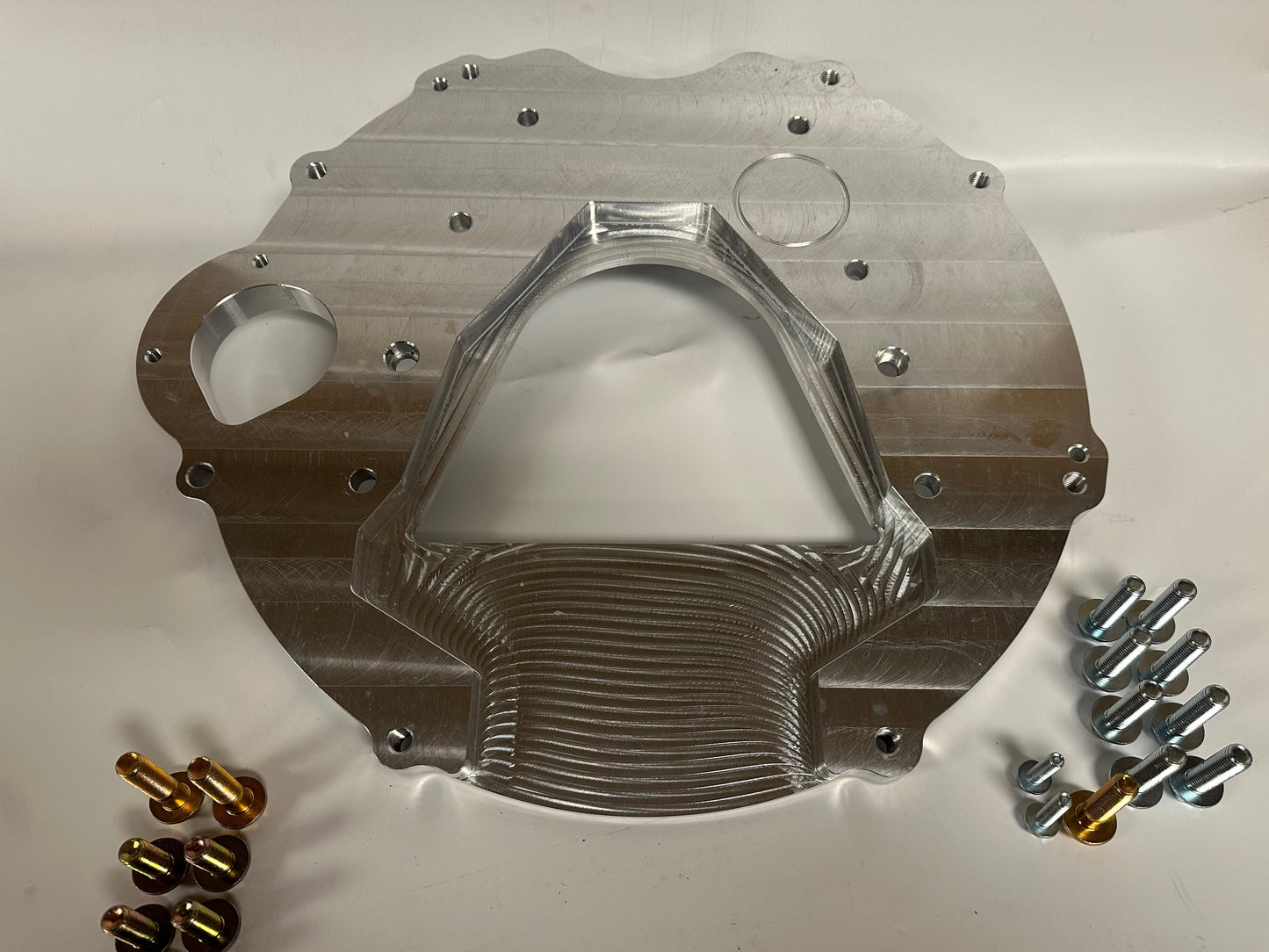

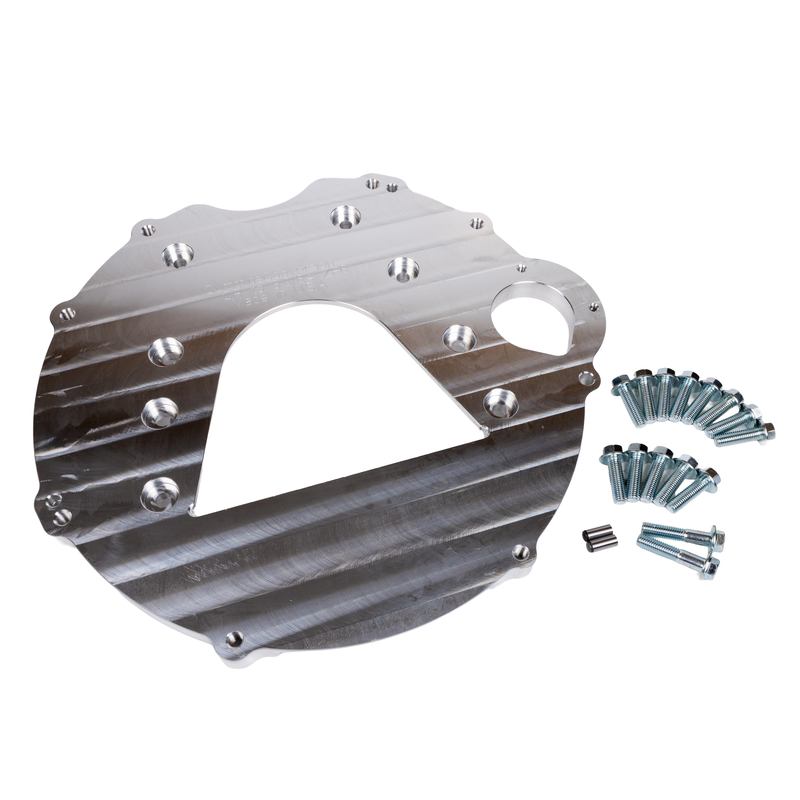

Precision machined transmission adapter comes with all the necessary hardware for a seamless installation.

Adapter has clearance to allow for a rear mount coolant bypass from all manufactures.

Adapter is designed to use a SACHS NFW7223 and will need to be machined to fit the 6205 pilot bearing. When used with the SACHS NFW7223 no starter spacer is needed.

We recommend any single disc clutch from a 99-03 7.3 zf6. We have had real good luck with a LUK 07181 clutch holding up to sub 350hp/700ft. If you have a newer 6.0/6.4 clutch you will need to have they flywheel stepped to the ford specs.

We recommend purchasing flywheel here (https://www.rockauto.com/en/moreinfo.php?pk=1976038&cc=1095869&pt=5348&jsn=936)

Adapter use a 03-07 6.0 Power stroke or 08-10 6.4 Power stroke Starter. We recommend the 6.4 starter as the 6.0 starter on some transmission might require bell housing clearance. On some Cummins engine a small amount of grinding is need on block to clearance starter(see last pic)

Adapter will also work on Dual Disc clutch's

***** Here at Cummins Conversion are adapters are designed off OEM Cad models, machined in house on all sides using state of the art equipment. We use in machine propping inspection to insure all parts are to tolerance before removed from the machine. Material is USA sourced 6061 alum

Threads are made using a process that creates a 30% stronger thread then conventional threads you will NOT strip this threads out*****
