Transmission Adapter: 89-02 12/24v Cummins to 1999-2003 7.3 ZF6

Transmission Adapter for a 1989-2002 12/24v Cummins to 1999-2002 7.3 ZF6

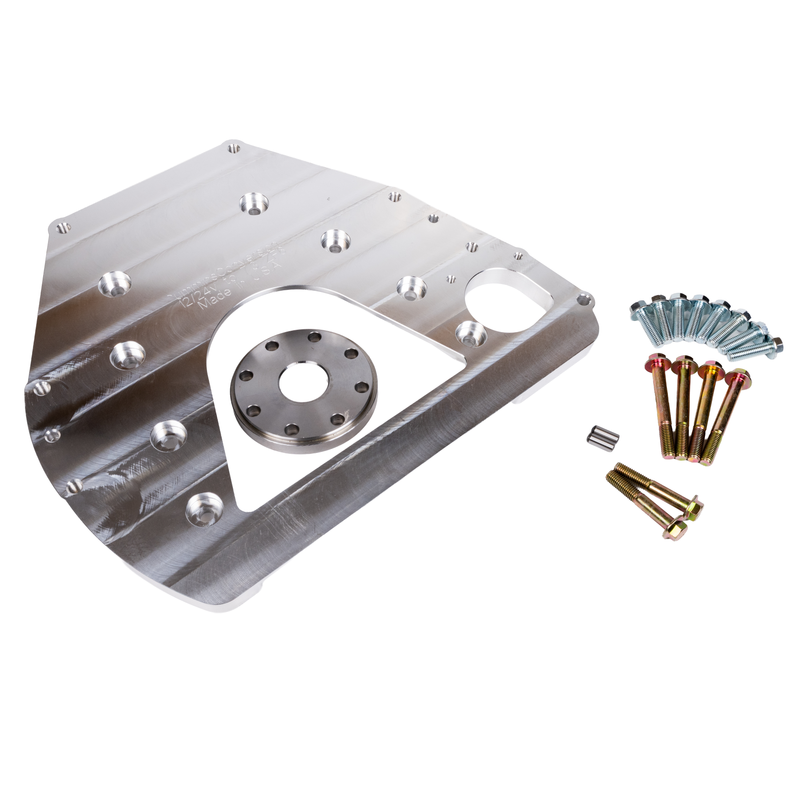

Precision machined transmission adapter comes with all the necessary hardware for a seamless installation. All 7.3 zf6 require a flywheel spacer which comes included.

We have found that on the 7.3zf6 it is better to run a flywheel spacer then a thinner plate as we have seen case flex causing input shaft bearing failure overtime.

We recommend any single disc clutch from a 99-03 7.3 zf6. We have had real good luck with a LUK 07181 clutch holding up to sub 350hp/700ft

Adapter will also work on Dual Disc clutch's

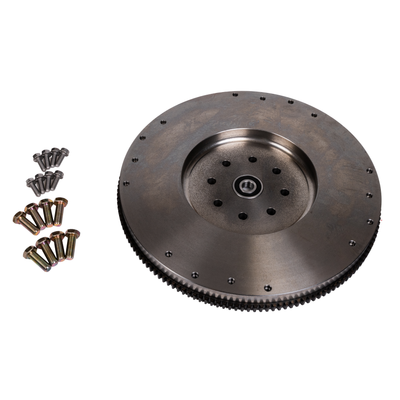

Adapter is designed to use a LUK LFW300 and will need to be machined to fit the 6303 pilot bearing. When used with the LUK LFW300 no starter spacer is needed, any single disc 99-02 7.3 zf6 clutch will bolt to this flywheel.

We recommend purchasing flywheel here (https://www.rockauto.com/en/moreinfo.php?pk=1976038&cc=1095869&pt=5348&jsn=936)

Adapter use a 03-07 6.0 Power stroke or 08-10 6.4 Power stroke Starter. We recommend the 6.4 starter as the 6.0 starter on some transmission might require bell housing clearance. On some Cummins engine a small amount of grinding is need on block to clearance starter(see last pic)

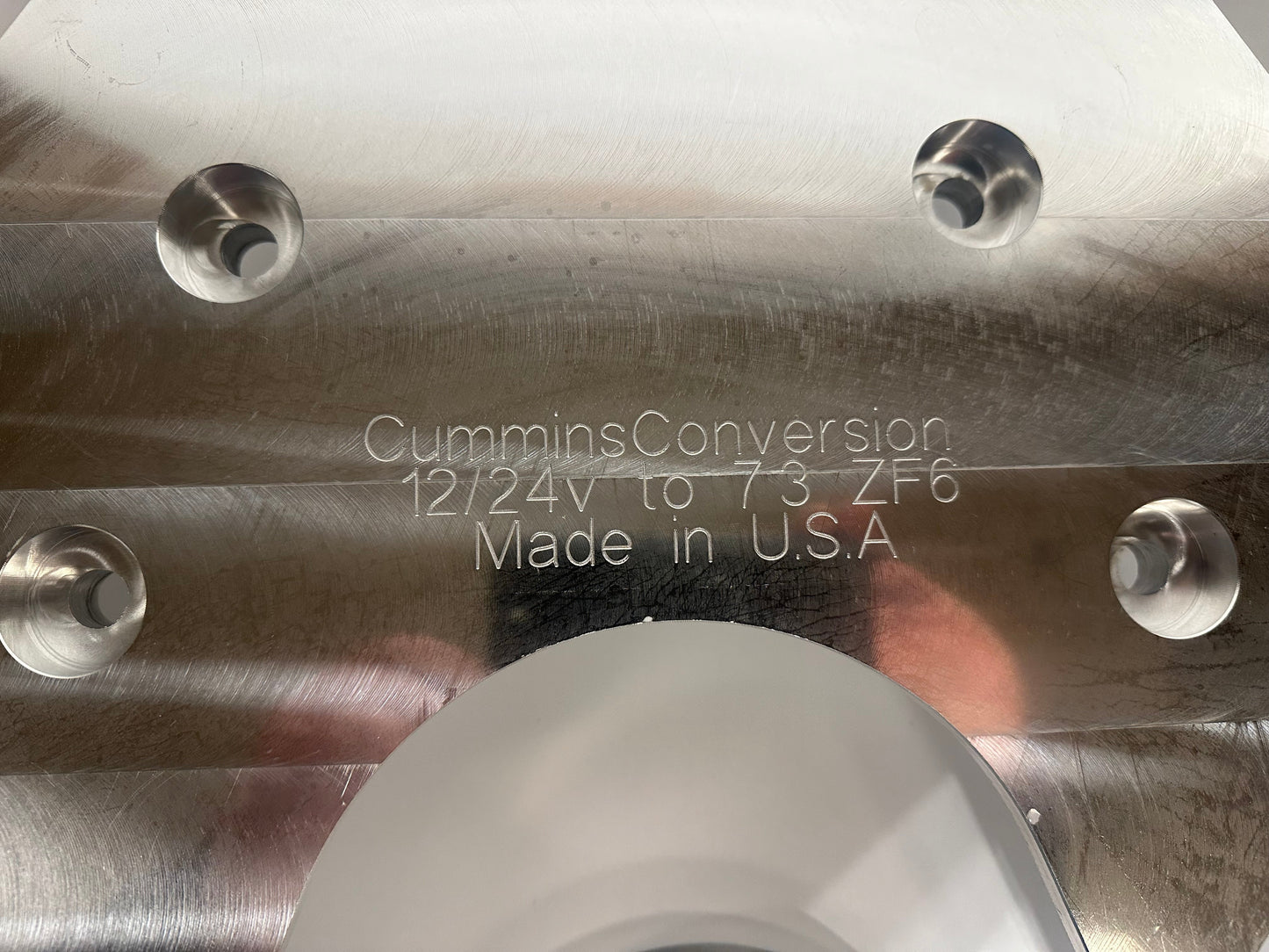

***** Here at Cummins Conversion are adapters are designed off OEM Cad models, machined in house on all sides using state of the art equipment. We use in machine propping inspection to insure all parts are to tolerance before removed from the machine. Material is USA sourced 6061 alum.

Threads are made using a process that creates a 30% stronger thread then conventional threads you will NOT strip this threads out*****
